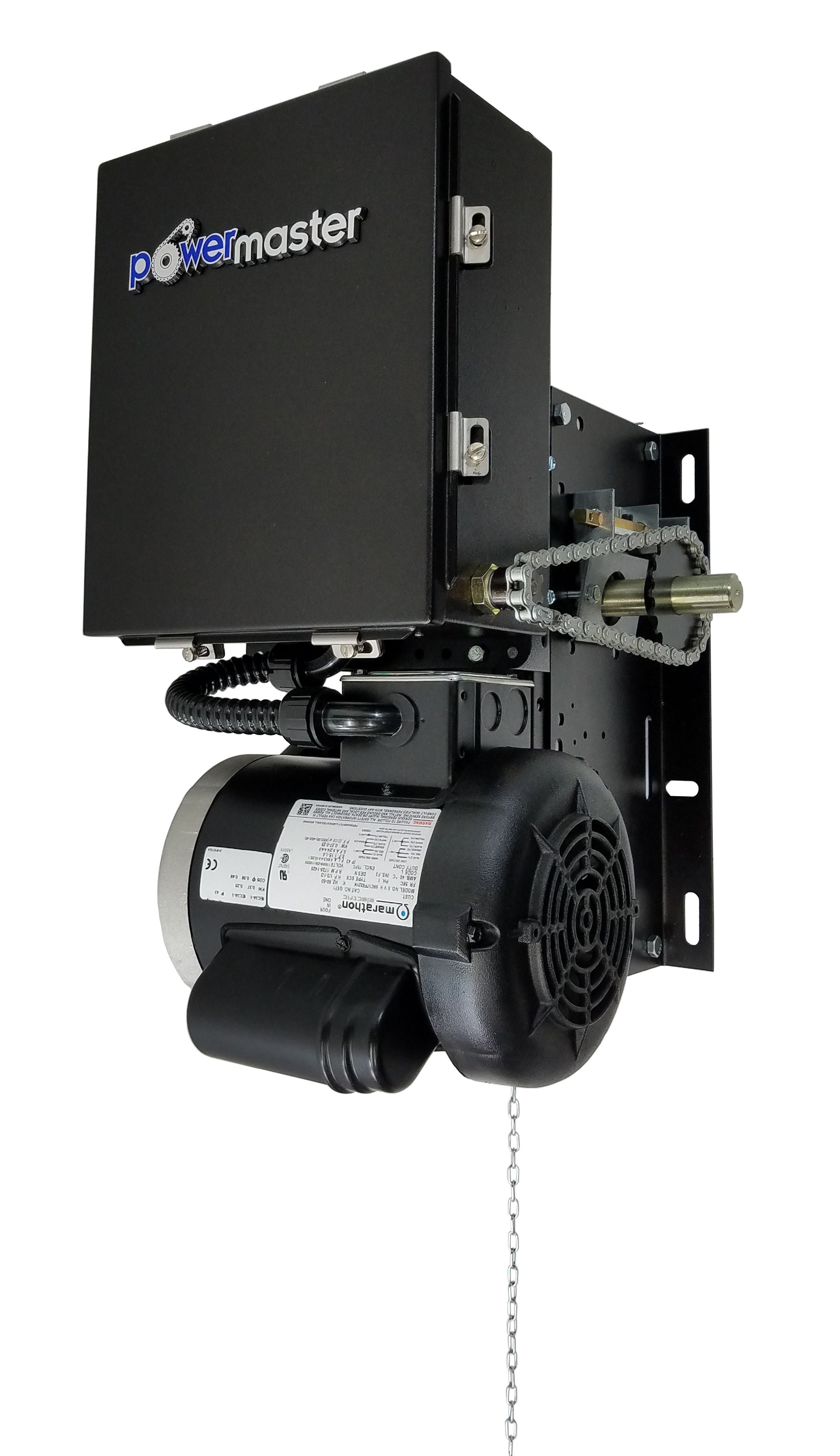

PowerMaster CJ-74 Carwash Jackshaft Operator 3/4 HP, 230/460V 3PH *NEMA 4 MODIFICATION*
$5,191.20
PowerMaster Model CJ operators are designed for Carwash type applications on Sectional Doors with Standard Lift, High Lift or Vertical Lift, as well as Rolling Service Doors and Grilles.
- High Starting Torque TEFC Motor with Full Overload.
- Protection – Removable without affecting limit switch setting.
- Solid State Circuitry with Power and Program Feedback LEDs.
- On Board Open/Close/Stop buttons for service and adjustments.
- Terminals labeled and grouped by function.
- Auto-Detect monitored photo beam for simplified installation.
- Selectable Operating modes B2, C2, D1, E2, T, TS.
- Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.
- Heavy Duty V-Belt and Chain Reduction, Mechanically Self Locking.
- Heavy Duty #50, Corrosion Resistant Roller Chain & Drive Sprocket Included.
- Adjustable Torque Limiting Clutch.
- Floor Level Disconnect & Electrical Interlock (For Manual Operation).
