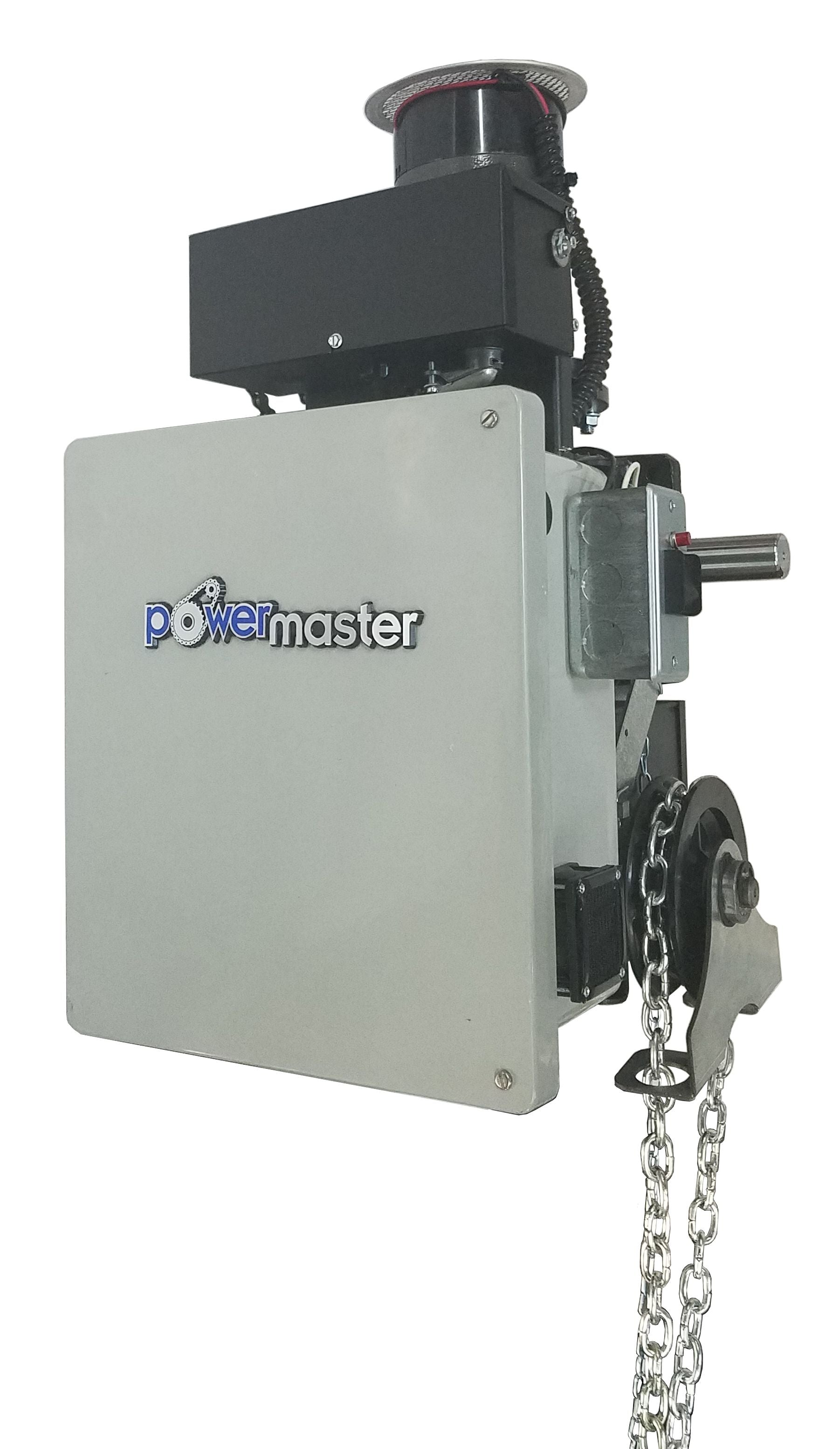

PowerMaster Gear Reduced Hoist Operator with 1/2 HP DC Motor
PowerMaster model D-MG is designed for use on sectional doors with high lift or vertical lift. It can also be used on rolling service doors and grilles.
IMPORTANT: Due to supply chain shortages we currently do not offer quantity discounts, and for some of our products we are limiting the quantities that may be purchased.
PowerMaster Gear Reduced Hoist Operator with 1/2 HP DC Motor
$6,844.32
PowerMaster model D-MG is designed for use on sectional doors with high lift or vertical lift. It can also be used on rolling service doors and grilles.
- Power Requirements: 115VAC.
- Battery Back-up.
- High Starting Torque Motor with Full Overload Protection.
- Solid State Circuitry with Power and Program Feedback LEDs.
- On Board Open/Close/Stop buttons for service and adjustments.
- Terminals labeled and grouped by function.
- Auto-Detect monitored photo beam for simplified installation.
- Selectable Operating modes B2, C2, D1, E2, T, TS.
- Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.
- Mechanically Self Locking Gear Reducer (Oil Bath Type).
- Heavy Duty #50 Roller Chain and drive sprocket Included.
- Floor Level Disconnect w/Chain Hoist Assembly & Electrical Interlock (For Manual Operation).
- Adjustable Torque Limiting Clutch Optional.
