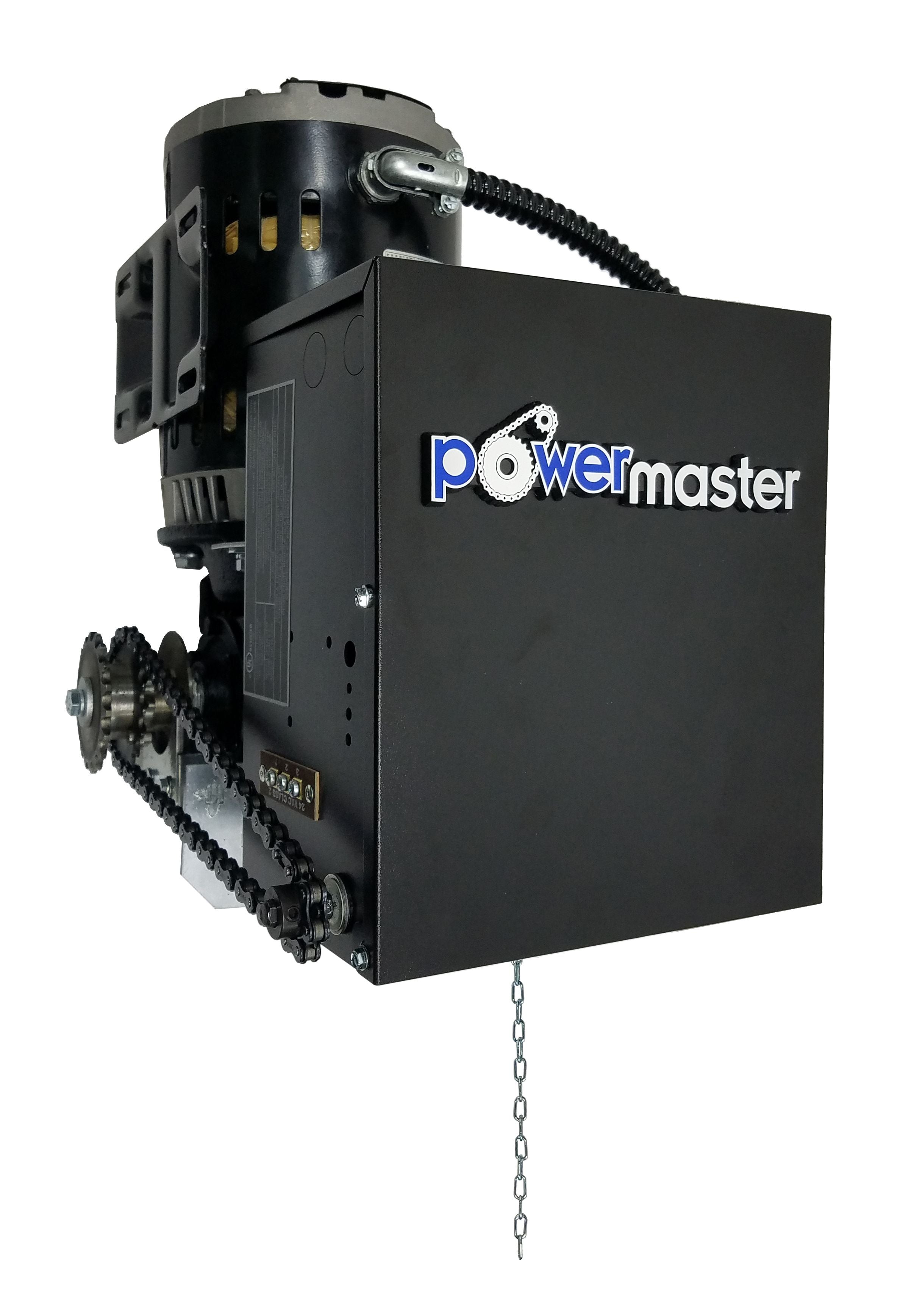

PowerMaster GJ-54 Gear Reduced Jackshaft Operator, 1/2 HP, 230/460V 3PH
PowerMaster Model GJ operators are designed for use on rolling service doors, rolling grilles, and counter shutters.
IMPORTANT: Due to supply chain shortages we currently do not offer quantity discounts, and for some of our products we are limiting the quantities that may be purchased.
PowerMaster GJ-54 Gear Reduced Jackshaft Operator, 1/2 HP, 230/460V 3PH
$3,044.16
PowerMaster Model GJ operators are designed for use on rolling service doors, rolling grilles, and counter shutters.
- High Starting Torque Motor w/full overload protection.
- Solid State Circuitry with Power and Program Feedback LEDs.
- Onboard Open/Close/Stop buttons for service and adjustments.
- Terminals labeled and grouped by function.
- Auto-Detect monitored photo beam for simplified installation.
- Selectable Operating modes B2, C2, D1, E2, T, TS.
- Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.
- Floor level disconnect.
- Heavy Duty Worm Gear Reduction.
- Heavy Duty #41 Roller Chain & Driven Sprocket for Final Drive Included.
- Adjustable Torque Limiting Clutch.
- Positive Chain Driven Rotary Limit Switches.
